Synergy, Innovation & Automatic

API & Bulk Drugs

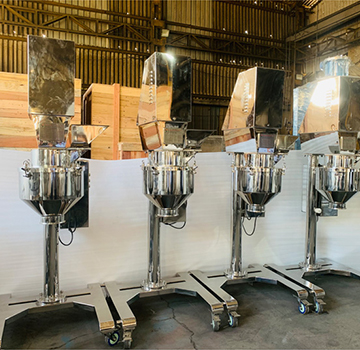

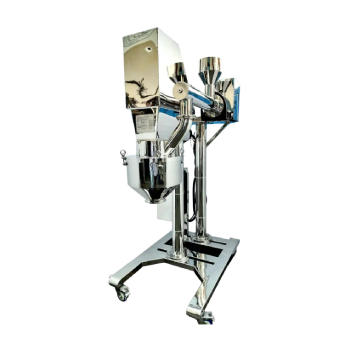

Multimill

Multi Mill is a self-contained portable unit useful for high speed granulating, pulverizing, mixing, shredding, and chopping of a wide range of wet and dry materials without special attachments. The Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. The material is fed in the hopper, shredded and milled through beaters consisting of knife and impact edges.

  • Capacity (In HP) - 1, 3, 5 and 7.5
  • cGMP Model and Desing as per ASME guidelines
  • MOC-SS304/ SS316/ SS316L/ Hastelloy
  • Qualification Documents - IQ, DQ, OQ and FAT Protocol
  • Optional Items/ Accessories
  • Belt Drive
  • Direct Drive with VFD
  • Full SS Construction including bearing housing and motor mounting plate
  • FLP Panel
  • Magnetic Grill for Outlet
  • Mechanical Seal
  • Sieves available - 0.3 - 12 MM
  • Vacuum loading system for charging the material


API & Bulk Drugs

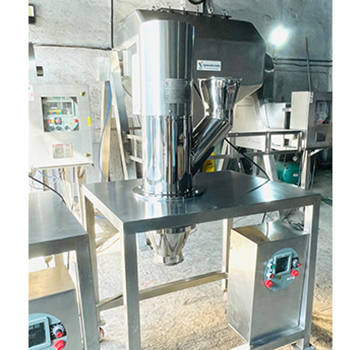

Co-Mill

Co-Mill is suitable for dry granulation and designed for wet granulation also. To satisfy the need of size reduction with low heat, low dust and clear noise operation, conical screen mill concept is developed. The key to the co-mill's performance is the engineered combination of low velocity operation and the highly evolved design and geometry of the conical screen and impeller.

  • Capacity (In HP) - 1, 3, 5 and 7.5
  • Sieves available - 0.5 - 10 MM
  • Advantages
  • Low heat, Low dust, Low noise operations.
  • Feeding flexibillity with multiple applications.
  • Easy to change and clean design.
  • Handles sticky, gummy, heat sensitive, heat and moist material.
  • Output more than multi-mill.

NB:- Spares items also available like Gasket, Screen, Rotor Assembly, Hopper, Motor, and other components etc.
