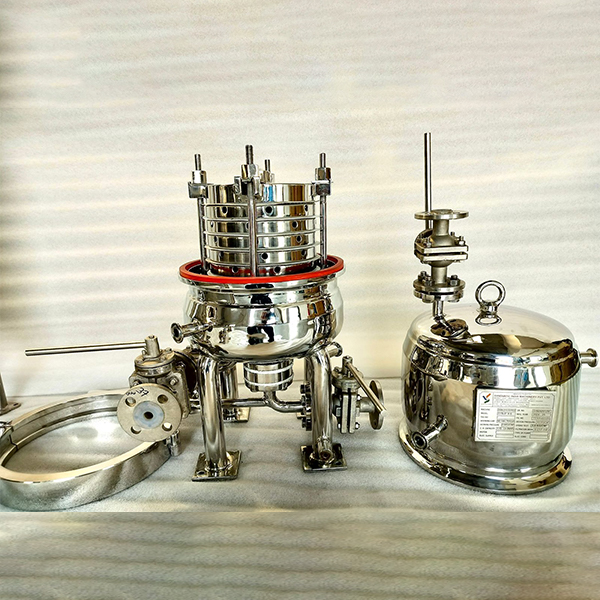

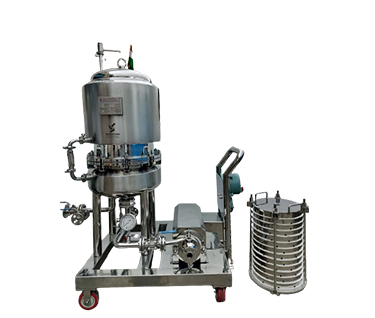

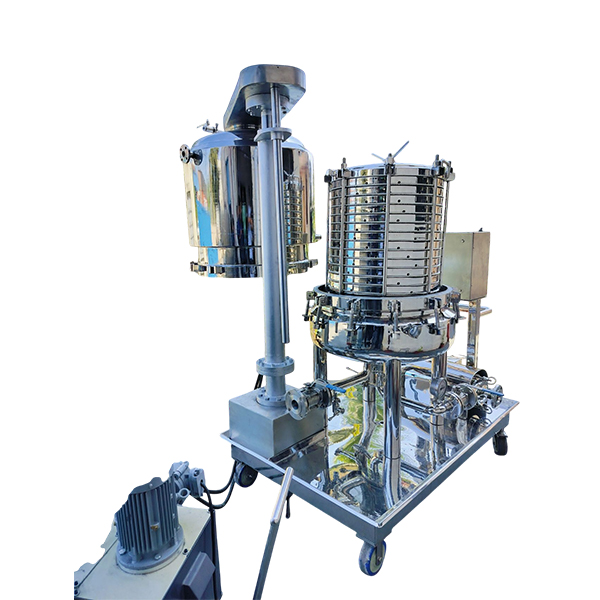

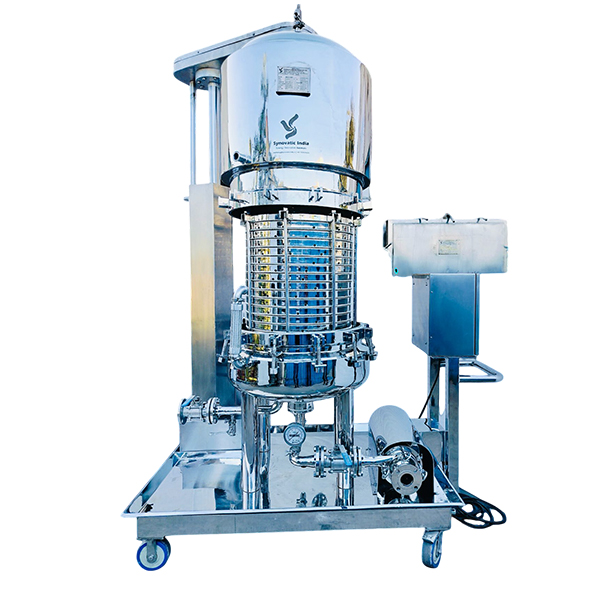

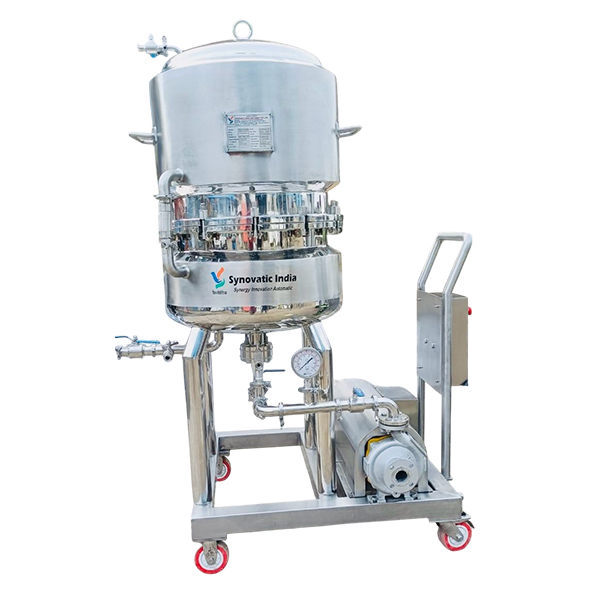

Sparkler Filter

Synovatic has various range of GMP Model Zero Hold up Sparkler Filter (Horizontal type) using in Pharmaceuticals, Biotech, API, Bulk-Drugs, Chemicals, Distilleries, Food, and other related Industries.

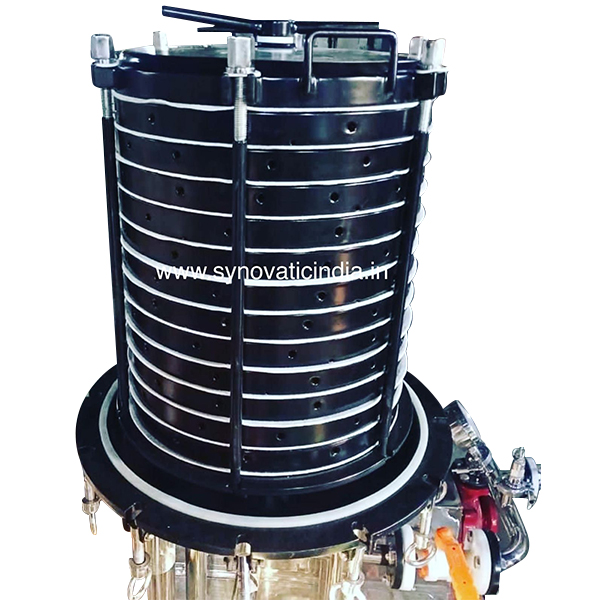

The operation of the sparkler filter press is to filter the impure liquid. Arriving on top of each horizontal plate with increasing pressure, the filter media holds back the impurities and allows the filter to pass through Centre by interlocking cups, which takes the filtrate to the outlet of tge filter.

  • Capacity (Dia In Inch) - 8,14, 18, 24 and 33 with Suitable No. of Plates.
  • Accessories - Pressure Gauge, Safety Valve, Air Vent, Ball Valves, Sampling Valve, Filter Media (PP/ Cellulose) and Suitable Elastomer Silicon/ PTFE/ EPDM/ Viton.
  • cGMP Model and Design as per ASME guidelines.
  • MOC-SS304/ SS316/ SS316L/ HASTELLOY/ PP
  • Suitable Model to be suggested as per the actual requirements of Holding Capacity and Filtration area.
  • Various types of Coating for Wetted Parts like - HALAR/ ETFE/ PFA/ PVDF/ PP (Food Grade) and Hastelloy for Friticon Parts etc.
  • Available Lining - PVDF, PP and Teflon.
  • Options for Various range of Pumps (KSB, Antico, QVC, Flurolined, Sulzer, Johnson, Alfa Laval, or as per requirements).
  • Qualification Documents - IQ, DQ, OQ and FAT Protocol.

NB:- Spares items also available like Gasket, Tie Rod, Centre Rod, Valves, Castor Wheels, Filter Media, Mechanical Seal, Pump, and Motor etc.
